400pcs FTTH SC APC UPC Fiber Optical Field Assembly
Fast Connector Quick Connector Rapid Connector
AdapterShip via UPS or FEDEX
Description

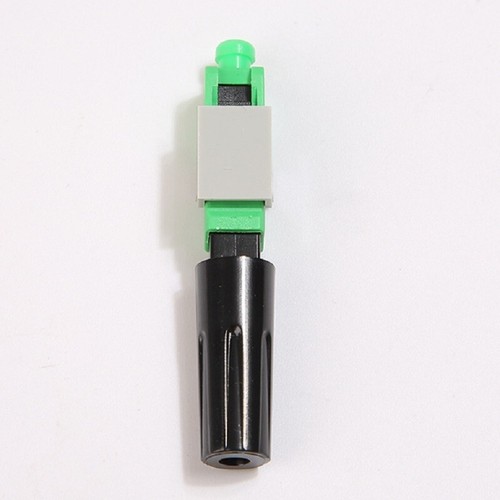

Field Assembly SC/APCfastconnectorfor FTTHcan provide aquick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.
FEATURES
1.Low insertion loss, 0.2dB, 0.3dB, customer optional
2.High return loss, 40dB, 45dB, 50dB, customer optional
3.Reliable, durability over 500 times mating
4.Low environmental sensitivity, adopt to complex environment
5.Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects .
SPECIFICATION
Item | Paramete |
Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
2.0/3.0 indoor cable |
Fiber Diameter | 125μm ( 652 & 657 ) |
Coating Diameter | 250μm |
Mode | SM |
Operation Time | about15s(exclude fiber presetting) |
Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
Return Loss | ≤ -40dB |
Success Rate | >98% |
Reusable Times | >10 times |
Tighten Strength of Naked Fiber | >5 N |
Tensile Strength | >50 N |
Teperature | -40~+85℃ |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
Durabiltiy (500 times mating) | IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
Note: in order to use this Product properly, please be sure to read the instruction before use it.
